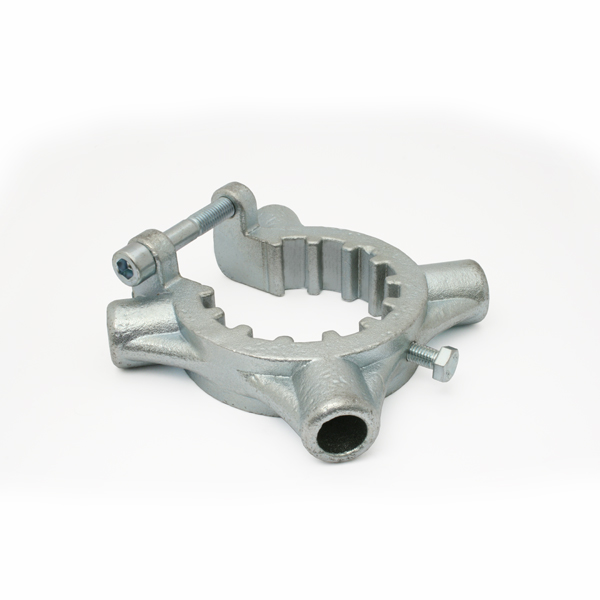

Crawford Spring Tension Adaptor Brochure

MATERIAL: Cast Steel Galvanised

Diameter: 17mm Holes

Specially designed for applying tension to torsion springs fitted with 'C' Type castings which normally only can be tensioned with a special ratchet tool

By mounting the adaptor, it is possible to tension the spring with use of standard tensioning bars

This provides the opportunity to service/maintain 'C' Type doors with standard tools

Dimensions: 158 x 28 x 47 mm
Unit: Piece (1)
Weight: 1.2kg
