4100WINDOW - 624

window 624

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 609 x 146mm
CUT OUT SIZE: 588 x 123mm


Rectangular with radiused corners
2 x 3mm Plexiglass
Butyl Seals and Fasteners supplied

To suit panel thickness 40mm

Harmonised Standard: EN 14351-1:2006+A1:2010
Notified Body: 1488
Resistance to Water Penetration: 7A
Resistance to Wind Load: C4 (1600pa)
Thermal Insulation: 2.7W/m²K
Air Permeability: Class 4

Dimensions: 609 x 146 x 42 mm
Unit: Piece (1)
Weight: 0.88kg

4101WINDOW- 824

window 824

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 609 x 203mm
CUT OUT SIZE: 588 x 181mm


Rectangular with radiused corners
2 x 3mm Plexiglass
Butyl Seals and Fasteners supplied

To suit panel thickness 40mm

Harmonised Standard: EN 14351-1:2006+A1:2010
Notified Body: 1488
Resistance to Water Penetration: 7A
Resistance to Wind Load: C4 (1600pa)
Thermal Insulation: 2.7W/m²K
Air Permeability: Class 4

Dimensions: 609 x 203 x 42 mm
Unit: Piece (1)
Weight: 1.14kg

4103WINDOW - 1326

window 1326

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 664 x 345mm
CUT OUT SIZE: 638 x 320mm, R=100mm


Rectangular with 100mm radiused corners
2 x 3mm Plexiglass
Butyl Seals and Fasteners supplied

To suit panel thickness 40mm

Harmonised Standard: EN 14351-1:2006+A1:2010
Notified Body: 1488
Resistance to Water Penetration: 7A
Resistance to Wind Load: C4 (1600pa)
Thermal Insulation: 2.7W/m²K
Air Permeability: Class 4

Dimensions: 663 x 345 x 42 mm
Unit: Piece (1)
Weight: 1.52kg

4105WINDOW - 0120

window 0120

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 329mm R
CUT OUT SIZE: 257mm R


Circular
2 x 3mm Plexiglass
Butyl Seals and Fasteners supplied

To suit panel thickness 38-40mm

Thermal Insulation: 1.38W/m²K

Dimensions: 330 x 42 mm
Unit: Piece (1)
Weight: 0.65kg

4109SECURITY VIEWING WINDOW

window security viewing window

MATERIAL: Steel Frame, Wired Glass

OVERALL FRAME SIZE: 178 x 178mm
CUT OUT SIZE: 152 x 152mm


Square 150 x 150 steel frame primed single glazed polished georgian wire glass

To suit panel thickness 40mm

Dimensions: 178 x 178 x 44 mm
Unit: Piece (1)
Weight: 2.4kg

4110WINDOW - 80MM PANEL

4110 80mm Vision Window

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 336 x 640 x 82mm
CUT OUT SIZE: 305 x 610mm

Square Corner Vision Window
2 x 2mm PMMA
Butyl Seals and Fasteners supplied

To suit panel thickness 80mm

Harmonised Standard: EN 14351-1:2006+A1:2010
Notified Body: 1488
Resistance to Water Penetration: 7A
Resistance to Wind Load: C4 (1600pa)
Thermal Insulation: 2.7W/m²K
Air Permeability: Class 4

Dimensions: 610 x 305 x 82 mm
Unit: Piece (1)
Weight: 2.75kg

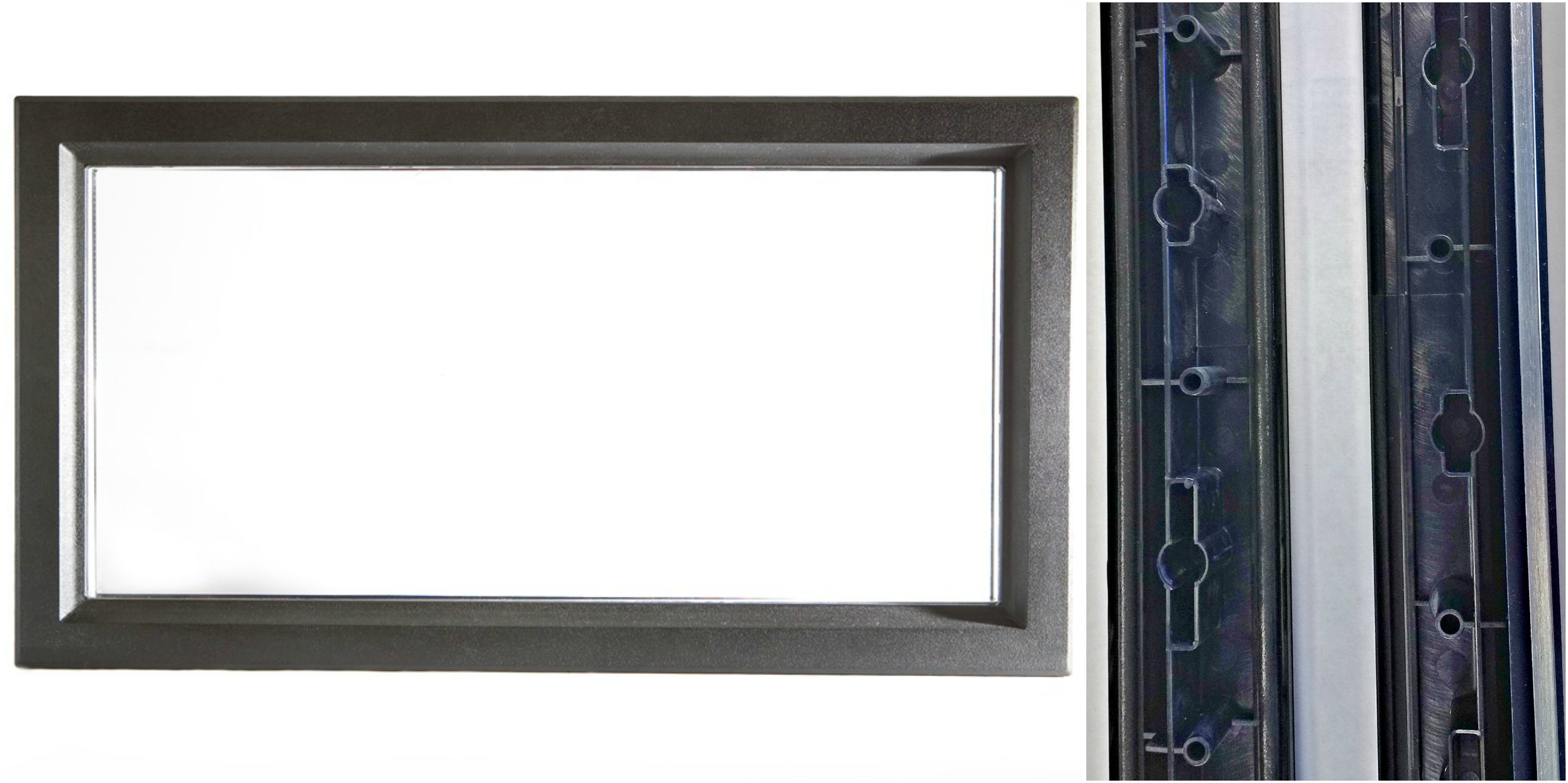

4112WINDOW -Square Corner

4112 and connection edit

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 680 x 373mm
CUT OUT SIZE: 650 x 345mm


Rectangular with square end
2 x 3mm acrylic sheets
Butyl Seals
'Screw' connection

To suit panel thickness 40mm

Harmonised Standard: EN 14351-1:2006+A1:2010
Notified Body: 1488
Resistance to Water Penetration: 7A
Resistance to Wind Load: C4 (1600pa)
Thermal Insulation: 2.7W/m²K
Air Permeability: Class 4

Dimensions: 680 x 373 x 42 mm
Unit: Piece (1)
Weight: 1.7kg

4113WINDOW -Round Corner

4113 edit with connections

MATERIAL: Black injection moulded frames, SAN Acrylic

OVERALL FRAME SIZE: 663 x 343mm, R=131mm
CUT OUT SIZE: 640 x 320mm


Rectangular with oval end
2 x 3mm acrylic sheets
Butyl Seals
'Screw' connection

To suit panel thickness 40mm

Harmonised Standard: EN 14351-1:2006+A1:2010
Notified Body: 1488
Resistance to Water Penetration: 7A
Resistance to Wind Load: C4 (1600pa)
Thermal Insulation: 2.7W/m²K
Air Permeability: Class 4

Dimensions: 663 x 343 mm
Unit: Piece (1)
Weight: 1.6kg
